Oops… My Smart Phone Laid An Egg(s)

June 26, 2013

My last post featured an illustration for an essay about social media. Here’s a second illustration for the same essay.

Main point: social media sites like Twitter are good at sound bites and breaking news,
not good at communicating the complex truth behind events. cell phone as chicken laying Twitter and social media eggs fostering rumor gossip opinion sound bites but not truth

A chicken smart phone– now there’s something to cluck about. Here’s a close-up detail image:
detail of illustration cell phone as chicken laying Twitter and social media eggs fostering rumor gossip opinion sound bites but not truth

There were two effects I was especially pleased with: the light reflection off the glass surface of the phone (red arrows below), and the semi-transparent slash thru the word TRUTH.cell phone as chicken laying Twitter and social media eggs red arrows indicating light glare reflection off phone applied with Color Dodge gradient in Photoshop

Let’s take a quick look at how these effects were achieved.

I’ve learned to use non-destructive techniques in Photoshop: I mask (hide) things rather than erase them, and I apply lighting effects on separate layers so I can experiment freely and undo anything that doesn’t work.

Here’s what the chicken phone looked like prior to the lighting effects. I applied the brown-red-yellow with a camel’s hair PS brush, so there’s a bit of grain, but it’s still basically flat color.

cell phone as chicken laying Twitter and social media eggs flat color on separate layer before lighting effects applied

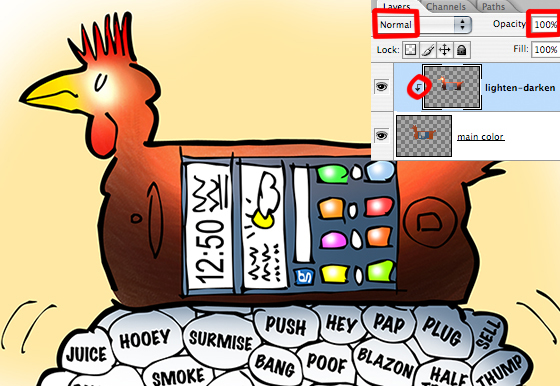

I created a separate layer for my lighting effects, and clipped it to my flat color layer. The indented arrow seen in the relevant portion of the Layers Window below indicates the two layers are clipped together.

This means that any brushstrokes I enter on the top (lighting effects) layer will only impact the flat color layer beneath it. No other layers will be affected.

I used the same camel’s hair brush (at various opacity and flow settings) to apply color to the top layer.

The key to getting the lighting effects: setting the brush mode to Screen, Color Dodge, and Linear Dodge to lighten the flat colors, and Multiply, Color Burn, and Linear Burn to darken them.

I ad-libbed at this point, jumping back and forth between colors and brush modes until I liked the combined effects.

cell phone as chicken laying Twitter and social media eggs light and dark shading effects applied on separate clipped layer using brush set to Multiply, Screen, Burn, Dodge

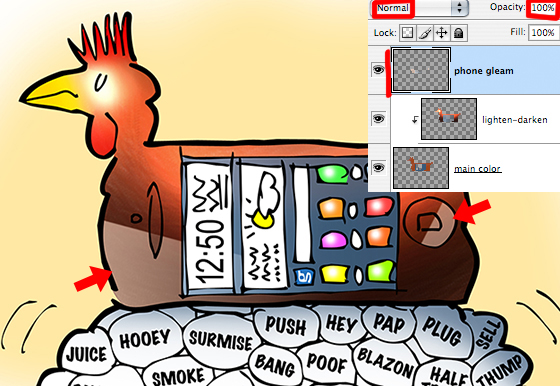

To create the light reflection on glass effect, I created a new top layer, and used the Pen tool to carefully select the two areas I wanted to apply the effect to (red arrows below). I then chose a light brown color and used the Gradient tool set to mode = Color Dodge to apply the effect.

You’ll notice in the Layers Window below, that the “phone gleam” layer is not clipped to the other layers. Why is that?

Alas– time for me to confess that I have not yet mastered all the subtleties of what are called clipping masks. I do know that once you start “stacking” clipped layers, results become unpredictable. In this case, after experimenting, I found using an unclipped
layer gave me the glare effect I wanted. A clipped layer did not.

For more on clipping masks (and layer masks as well), I’d suggest this excellent post
by Matt Ward.  cell phone as chicken laying Twitter and social media eggs light reflection glare applied to selected areas on separate layer using Gradient tool set to Color Dodge mode

Which brings us to that slash across TRUTH– why was I so pleased about that??

Well, I began by using a black slash, but it obscured the word and made it hard to read– was it TRUTH or TROTH?

So I switched to a red slash. The bright contrast was a big improvement, but it still left
that element of doubt. An illustration will not be a success if it contains ambiguities or distractions.social media eggs with black slash thru word truth compared to red slash thru truth to indicate that social media like Twitter cannot convey complex truth in short sound bites

Then it struck me that all I had to do was lower the opacity and make the slash semi-transparent:social media eggs with red slash at 100% opacity thru word truth compared to red slash at reduced 86% opacity which makes it easier to read the crossed out word

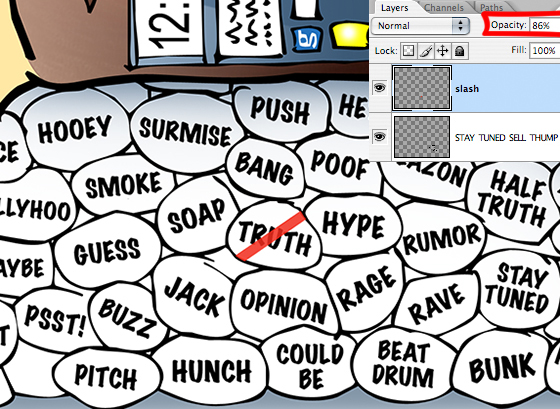

Here it is with the relevant portion of the Layers Window.social media eggs detail showing red slash thru word truth with Photoshop Layers window indicating opacity reduced to 86% so can read word being crossed out

Here’s the final again. Even at a distance, one knows that’s the word TRUTH.

Best of all, by grappling with the problem, I vastly improved the design: the color red immediately draws the reader’s eye to the most crucial element in the illustration.

cell phone as chicken laying Twitter and social media eggs fostering rumor gossip opinion sound bites but not truth

Are you ready to rush out and buy a chicken smart phone?

Would you believe there’s really a Chicken Sounds app you can use for a ringtone?

Did you find the Photoshop tips helpful?

Hope you’ll leave a comment.blank vertical space, 24 pixels high

If you enjoyed this post and would like to let me know, please click the Like button below.

If you’d like to share this post with others, please click Tweet or Facebook or one of the other Share buttons.

I also invite you to get updates. Just click the Get Updates button in the sidebar below the Portfolio Thumbnails, or click + Follow in the blog menu bar.blank vertical space, 24 pixels high
